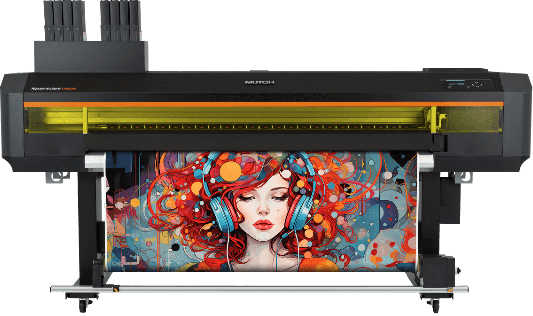

The XpertJet 1682UR is a 64” (162 cm) high-performance UV LED printer, using MUTOH’senvironmentally-responsible and safe US61 CMYK,White and Varnish inks. It overs high productivity (upto 27.3 m²/h) with outstanding image quality up to1440 x 1440 dpi.
Unleash your creativity with unique 5-layer printing forgraphics that change front-to-back. Or 4 layergraphics for frontlit/backlit combi prints. Print ontransparent and non-white materials, and add spotvarnish for magical, eye-catching ejects.
Enjoy the power of MUTOH’s genuine VerteLith RIP aswell as a range of automated calibrations and comfortfeatures for flawless production and optimal use.
Key Features
- UV LED Printer C, M, Y, K, White, Varnish
- Two 1440 nozzles and two 4-inch UV LED lamps
- Speeds up to 27.3 m²/hr
- Print 5 layers at a time without pulling the material back
- Combined front/backlit graphics & gloss finishing
- High user convenience - multiple automatic calibrations
- Greenguard Gold certified inks are safe and environmentally friendly
Intelligent printing technology
Applications

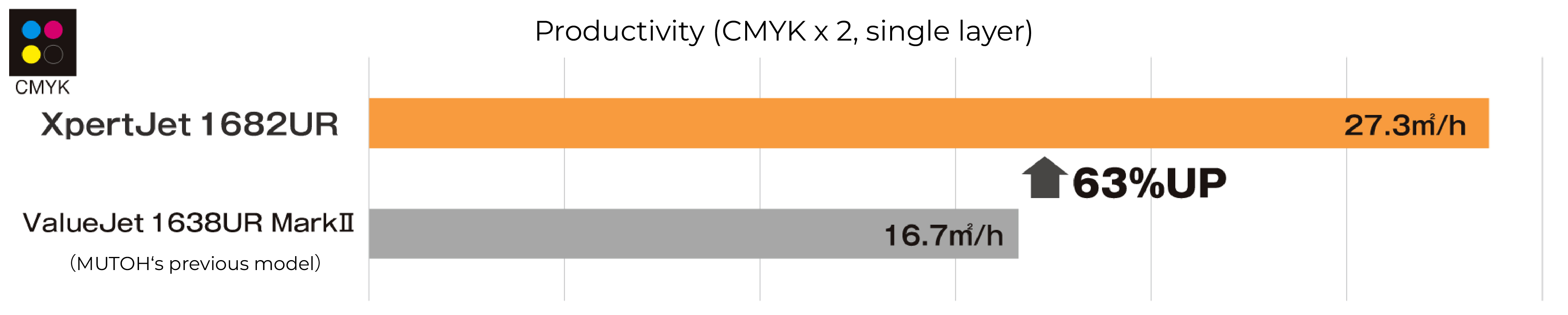

Productivity UP
Newly added Draft mode that reaches the maximum productivity of 27.3m2 /h
Speed (m²/h)
| Print mode | 4 colors CMYK | 6 colors CMYK, Wh & Va | |
| Single layer | Single layer | 2 layers | |
| Draft | 27.3 | 13.2 | 7.1 |
| High Speed |
15.8 |
8.8 | 4.7 |
| Production | 13.0 | 6.8 | 3.4 |
| Quality | 8.9 | 4.4 | 2.0 |
| High Quality | 6.6 | 3.4 | 1.7 |

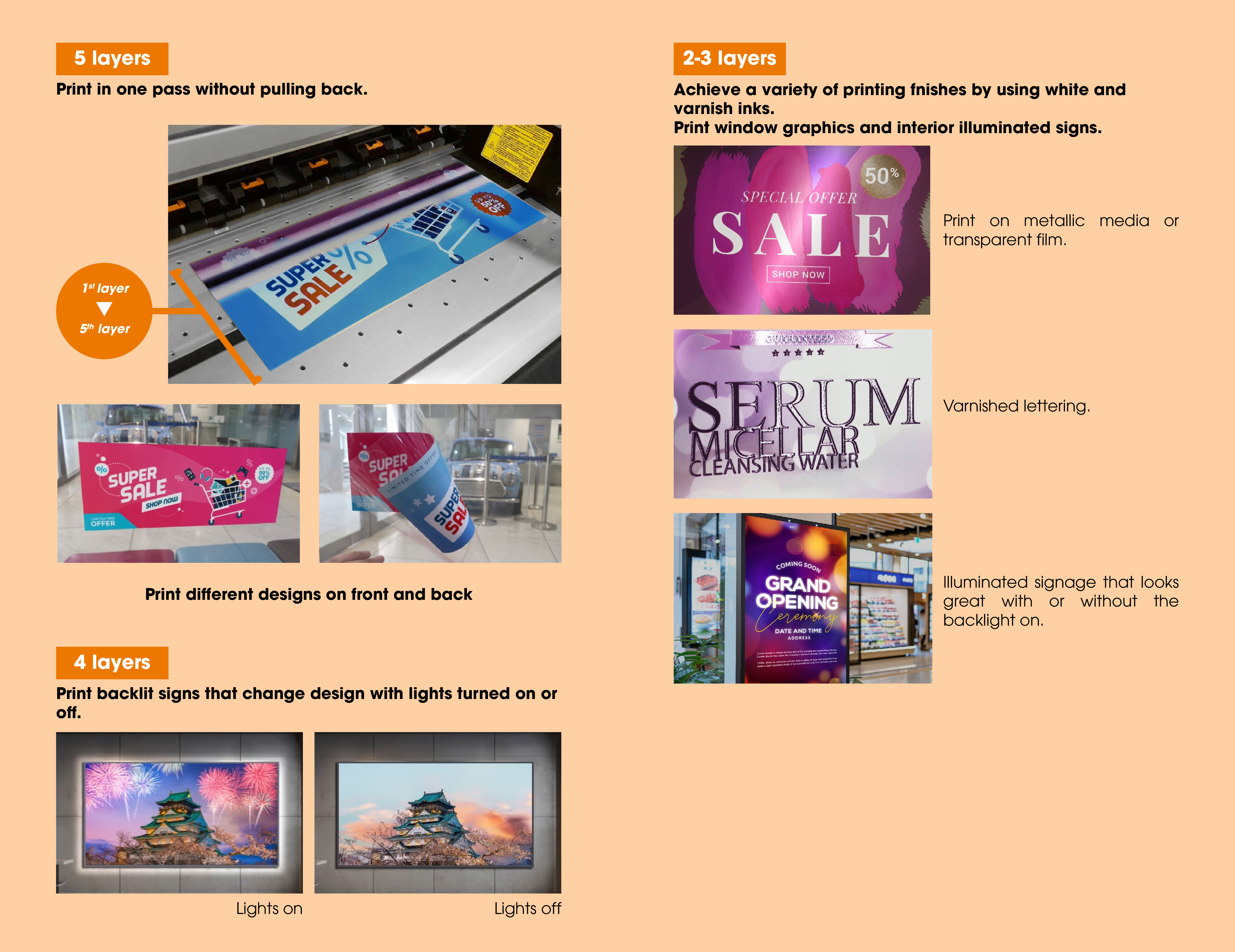

Layer printing – greatly expanded application compatibility

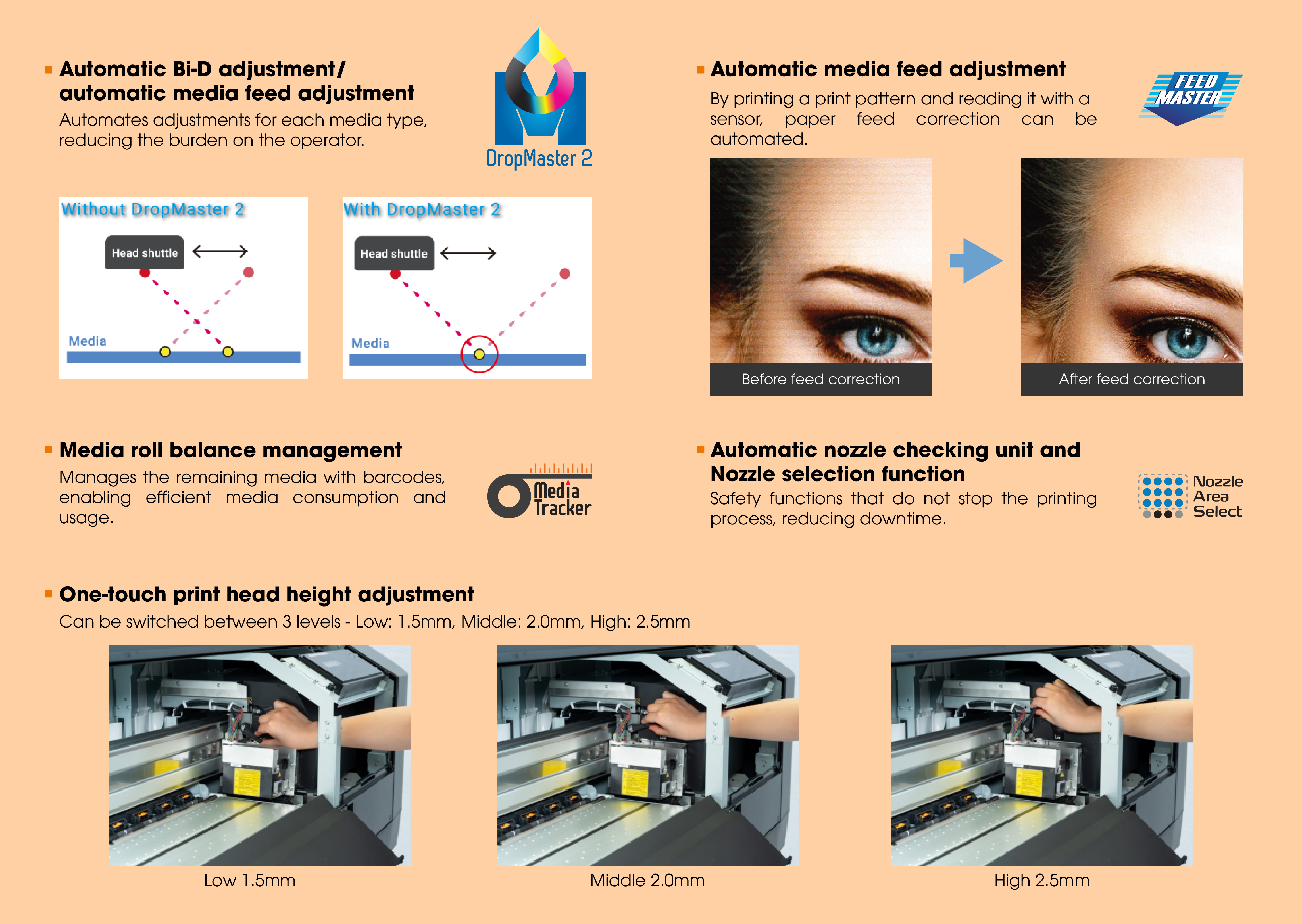

Ease-of-use features
Compatible with Genuine RIP software VerteLith
| Layer printing function Print up to 5 layers in one pass |
RIP preview function Check your print data before outputting |
Nesting function Use media effectively without waste |
||||
 |
 |
 |
||||
| Depend on the number of layers and Wh/Va finishes, different printing fuctions have been optimized. | Display the projected printed dots on your monitor before printing in order to check color output. | In addition to general placement functions, VerteLith automatically places print jobs minimizing free space and performs auto nesting. | ||||
US61 ink, designed with health risks in mind
- US61 Ink - Safe for users' health.
- Strictly comply with EU regulations on chemicals, ensuring safety for users' health and being environmentally friendly.
- Ink ingredients do not contain CMR group 1 (1A, 1B) or SVHC (Extremely hazardous substances).
- High flexibility, good abrasion resistance
- Suitable for printing on flexible materials commonly used for advertising signs or glass graphics.
-
Changing ink has never been easier!
-
Just replace the ink bag and you're done, no need to worry about ink getting on your hands.
-
Cost-saving, long-term use.
-
Up to 12 months of shelf life with a large capacity of 800ml.
Ink set: 4 colors CMYK or 6 colors CMYK, Wh & Varnish
800ml ink bag
UL - GREENGUARD Gold
Specifications
| Print method | On-demand piezo drive system | |
|---|---|---|
| Number | 2 | |
| Resolution | 1440 x 1440 dpi | |
| Head height | Low:1.5mm, Middle:2.0mm, High:2.5mm | |
| Roll media width | Maximum:1,625mm Minimum:500mm | |
| Maximum media thickness | Low: 0.3mm, Middle:0.8mm, High:1.3mm | |
| Media Measurements | φ250mm/ 2" & 3" / 30kg | |
| Ink type | UV LED ink (US61) | |
| Ink configuration | 4 colour (C, M,Y, K), 6 colour (C, M, Y, K, White, Varnish) | |
| Khối lượng mực | 800ml ink bag | |
| Interface | Ethernet (10BASE-T/100BASE-TX) | |
| Hệ thống sấy | Đèn LED UV | |
| Power supply | AC 100-120 V / AC 200-240 V - 60/50 Hz | |
| Environmental condition | Temperature:20℃～32℃ Humidity: 40%～60% No condensing | |
| Power consumption |
Operation:AC100V～120V/AC200V～240V, 950W or less Sleep mode: AC100V～120V/ AC200V～240V, 21W or less |
|
| Dimensions (W×D×H） | 2,770mm × 895mm × 1,504mm (Including large capacity ink bag adapter) | |
| Weight | 181kg (Printer body :149kg, Stand: 32kg) | |
●All company and product names are registered trademarks of the respective companies.
●The contents of this catalogue are current as of September 2024.
● Product specifications and appearance are subject to change without notice after improvement revisions, etc.
●Some of the used images are for illustrative purposes only. They may differ from the actual printed products
