24” ECO-SOLVENT PRINTER/CUTTER COMBO
Print, Cut, Create! The XpertJet C641SR Pro is adesktop 24” (630 mm) printer/cutter combining advanced print technology with precision cutting in one device - ideal for businesses starting out or bringing graphics and sticker production in-house. Next to the built-in contour cut and perforated through cut capability, the XPJ-C641SR Pro integrates a MUTOH AccuFine 1600 nozzle print head and MUTOH’s proprietary i-screen intelligent interweaving to deliver superior banding-free print quality, even at lower resolutions. Powered by MUTOH’s genuine VerteLith RIP software, the printer/cutter delivers best-in-class speeds. It can be equipped with a stand on caster wheels an automatic roll-up device to cope with higher production needs. Designed for both indoor and outdoor applications, theXPJ-C641SR Pro comes with MUTOH’s state-of-the-art MS31 / MS51 GREENGUARD Gold certified inks.
Key Features
- Compact desktop printer and cutter: Only 24 inches (630 mm) in size, saving space.
- Integrated with multiple cutting functions: Contour cutting, perforation cutting right on the machine.
- Print on a variety of materials: Roller pressure can be adjusted to suit each type of printing material.
- Top printing speed: Print at speeds up to 6.5 m²/hour (high quality) or 9.7 m²/hour (high speed).
- Outstanding print quality: AccuFine1600 printhead for sharp images, vivid colors.
- Environmentally friendly ink: Uses MUTOH GREENGUARD Gold certified ink, safe for health.
- Maximum user support: Automatically aligns, adjusts the paper path and monitors the remaining amount of paper on the roll.
Intelligent printing technology
Applications
Explore the power of the XpertJet C641SR Pro

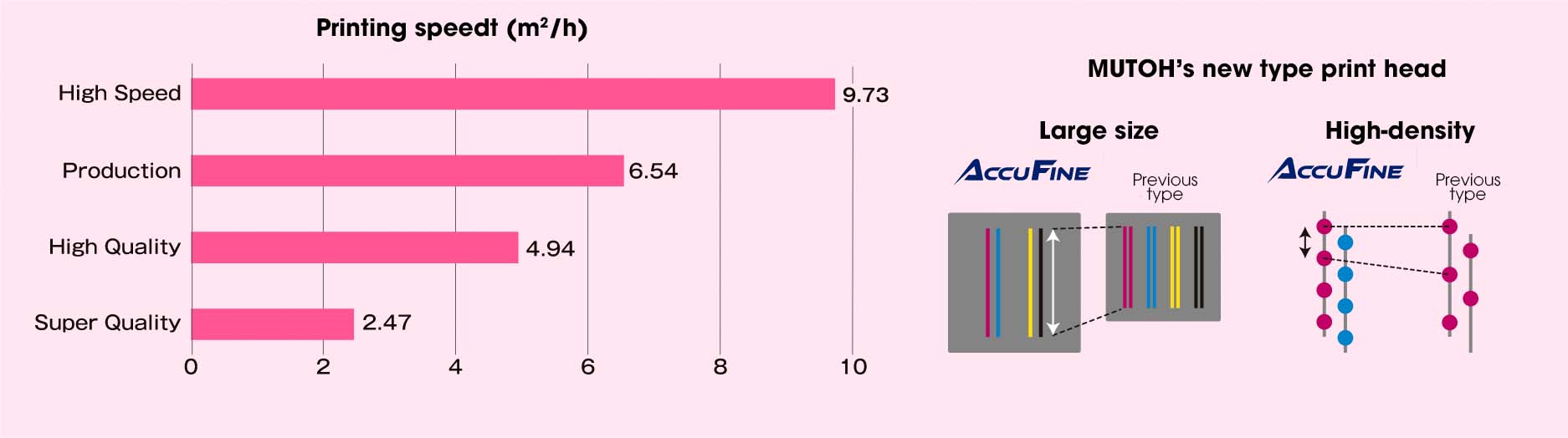

Printing Speed
Equipped with MUTOH’s new type print head AccuFine: a large and high-density print head with improved ink landing accuracy, high-speed printing, and high image quality.
The print speed is up to 2.3 times faster than our previous models, which makes it extremely productive.
User-friendly platform, stable operation
Easy to install, compact printer body
| Integrated Contour Cutting! | ||||||
| Contour Cutter | Adjustable Pressure Rollers | Cutting Mat | ||||
 |
 |
 |
||||
|
Cutting speed: 10～150 [mm/s] Cutting pressure: 30～300 [gf] |
Two repositionable pressure arms to accommodate dierent media widths | Dedicated cutting mat for cutting / contour cutting jobs | ||||
Newly developed cutting function

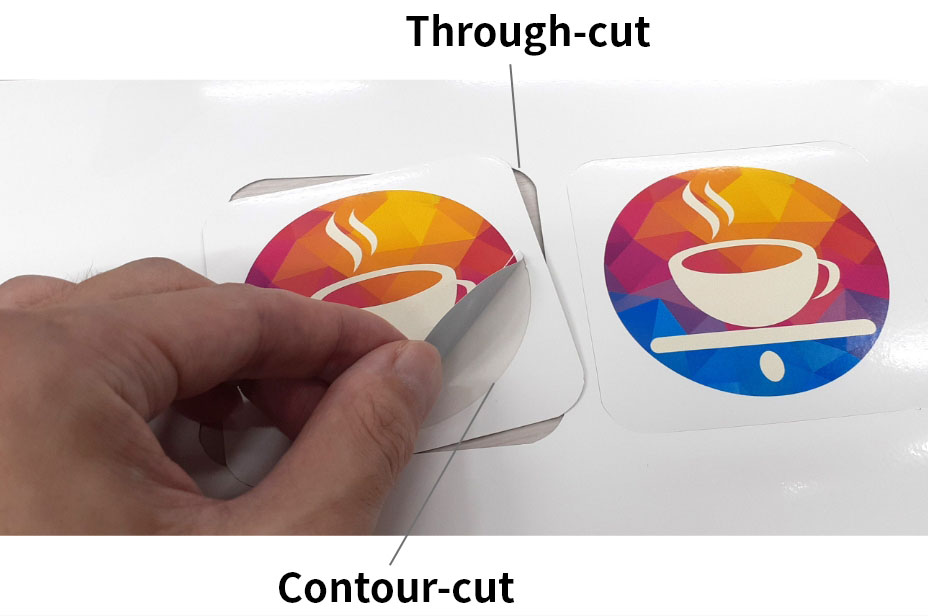

Supports both “contour-cut” and “through-cut” cutting types. The former cuts through the media leaving the release liner layer intact, while the latter one cuts all the way through the release liner while leaving connecting seams.
Cut quality settings You can select between three types of cut quality settings for curved lines. Choose based on the balance between quality and speed according to the level of curvature of the cut data or the intended use.

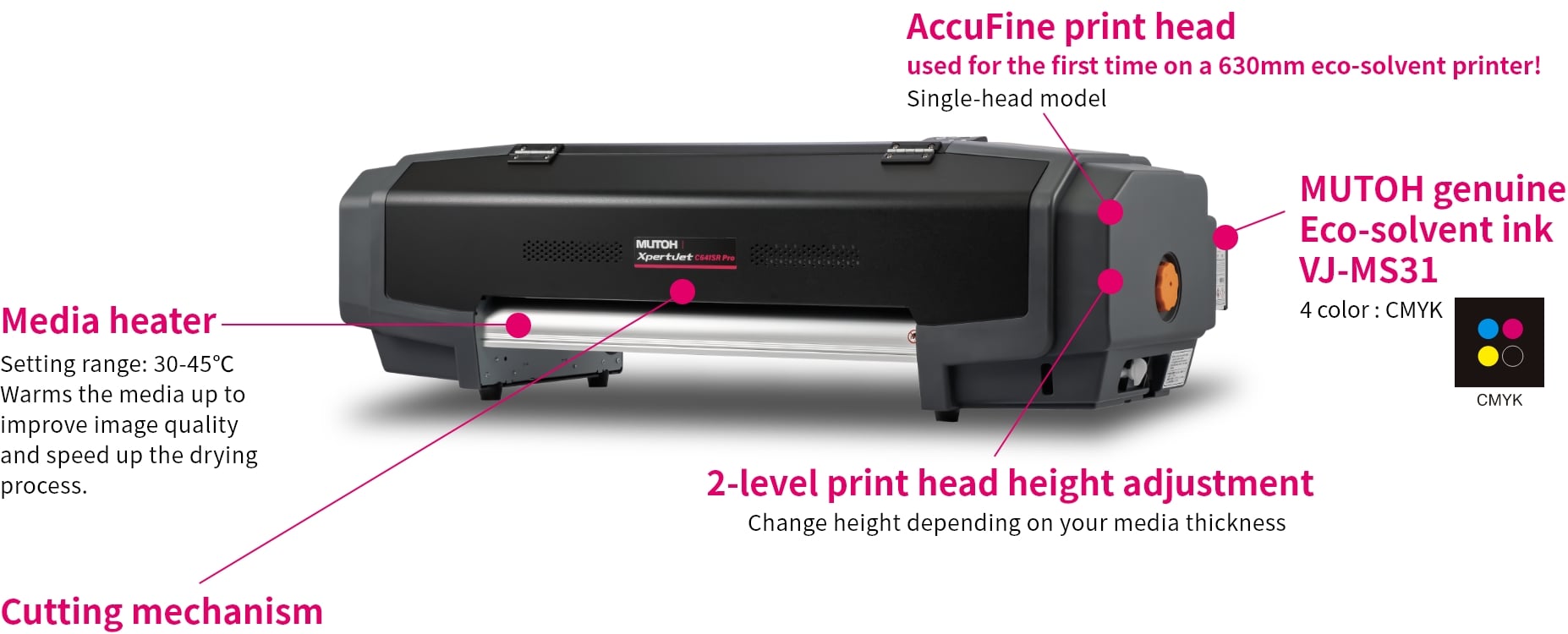

Easy to install, compact printer body
Its compact size and light weight make this printer easy to install, meaning it can be operated according to your preferred style.
Use it on a desk top or in a combination of a dedicated stand with a take-up system. This machine can be operated according to your needs even in limited spaces, such as offices or stores.
Dedicated stand (optional).
Take-up system (optional)
Take-up system that supports media up to 10kg. Attach it to the dedicated stand and start winding the printed media.
Compatible with genuine VerteLith RIP software

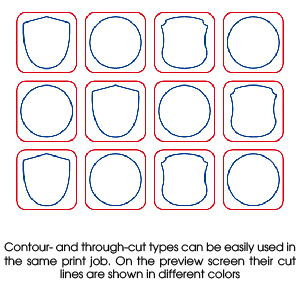

| Cuting settings Contour- and through-cut types available. |

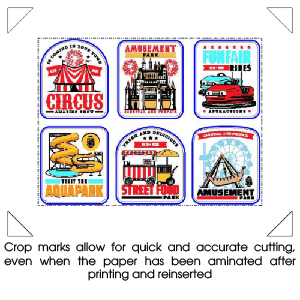

Crop marks High speed scanning using original |

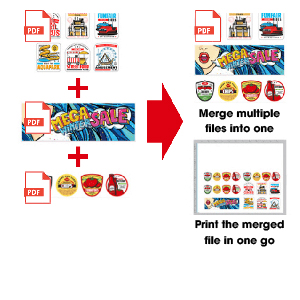

Merging PDF files Print different data together |
||||
 |
 |
 |
||||
| Both printing and cutting are done using the same software. Cutiing settings can be finely adjusted. | Supports MUTOH's original crop marks, which get quickly detected and improve scanning efficiency. | After merging PDF files into one using this RIP you can print all of them in a single print job. | ||||
Genuine MUTOH Ink
This genuine ink is specifically designed for MUTOH's eco-solvent inkjet printers, offering a wide color gamut and excellent high-quality printing capabilities. Prints are highly durable, with resistance to weather, abrasion, and chemicals. The advanced ink formulation reduces nozzle clogging, minimizing maintenance. VJ-MS31 is "GREENGUARD Gold" certified, safe for the environment, and ideal for indoor applications.
Ink set: 4 colors (CMYK)
Packaging: 220ml ink cartridge, 1000ml ink bag
UL - GREENGUARD Gold Certification
Specifications
| Print method | On-demand piezo drive system | |
|---|---|---|
| Number | 1 | |
| Resolution | AccuFine: 1200dpi - Max: 900x1200dpi | |
| Height adjustment | Low:1.5mm | High: 2.8mm | |
| Roll media width | Maximum: 630mm | Minimum: 198mm | |
| Max. thickness | 0.8mm (only printing) | 0.4mm (cut-through) | |
| Media measurements | φ150mm/ 2" & 3" / 9kg hoặc ít nhất | |
| Ink type | Eco-solvent | |
| Color | KCMY-4 colorss | |
| Capacity | 220ml ink cartridge 1000ml ink bag (with dedicated adapters) |
|
| Drying control system | 45℃ | |
| Cutting Speed | 20 – 150 mm/s | |
| Cutting Force | 30~300gf | |
| Cutting Offset | 0.00~0.50mm | |
| Interface | Ethernet (10BASE-T/100BASE-TX) | |
| Power Supply | AC 100-120 V / AC 200-240 V - 60/50 Hz | |
| Sound power level | 58.5dB hoặc ít nhất | |
| Print Environments | Temperature: 20oC~32oC Humidity: 40~60%RH no condensation |
|
| Power Consumption | 830.0W or less (Peak: 2.3kW or less) | |
| Dimensions | W 1190 x D 437.5 x H 365.6mm | |
| Weight |
Printer body: 34g |
|
| Option | IJ-STDX-01 (New X stand) | |
| VJ628-STD (Default stand) | ||
|
VJｰHCIPADPT (Adapter) |
||
|
IJ-SCRHT-01 (High torque roller) |
||
| VJ06-TUP10 (Take-up) | ||
| IJ-CEAJ-01 (Blade adjustment) | ||
**Chế độ tùy chỉnh được thiết lập bởi phần mềm RIP . Để biết chi tiết vui lòng liên hệ đại lý ủy quyền.
