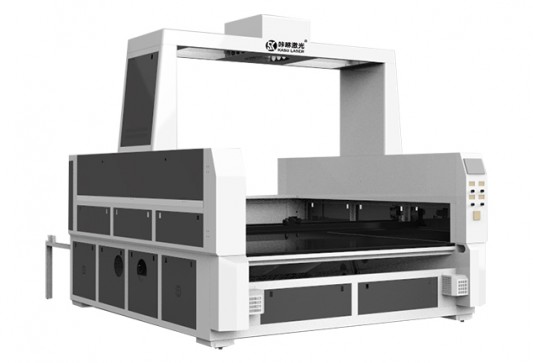

KASU KD1816-SY

KD1816-SY
MÁY CẮT PHẲNG LASER

Large cutting area, but still high cutting precision. KASU KD1816-SY’S double asynchronous laser cutting heads are installed in two separate guide rails, cutting different shapes of patterns. It supports one-time cutting of plain fabrics with 1800*1600mm under non-vision working mode and 1800*1450mm under vision working mode. And it also supports continuous joint cutting of oversized patterns over 1600mm in length.

Doubled Cutting Efficiency, Higher Productivity.

Powerful Control Software Meets Multi-Industry Needs.

Both Vison and Non-Vision Working Modes.

Dtable and 24 Hours Running.

Super Simple to Operate.

VISION LASER CUTTING MACHINE SOLUTION

Laser cutting is an industrial process used in many different fields. It is ideal enough to smoothly and effectively cut many kinds of materials without causing it any harm overall.

The co2 laser cutting machine with Canon SLR camera and smart vision system can automatically recognize the contour of the printed or embroidered fabrics, leather, and other flexible materials and then cut with super high accuracy and efficiency.

DATA SHEET

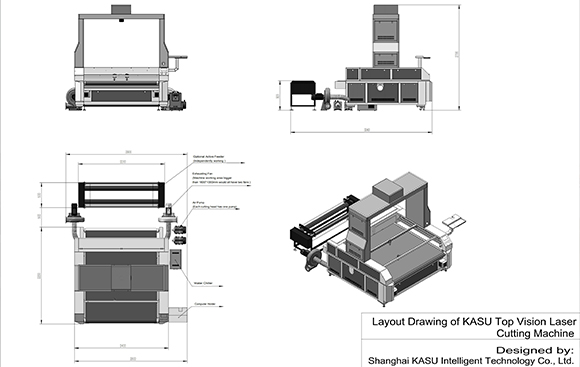

WORKING AREA	1800mm x 1450mm (Vision Mode) 1800mm x 1600mm (Non-vision Mode)	DIMENSION	2.28 x 2.5 x 1.51m 2.28 x 0.86 x 055m
LASER TYPE	Glass CO2 Laser Tube	WORKING SPEED	1000mm/s
LASER POWER	80/100/130/150W	POWER SUPPLY	AC220V±5% 50Hz/60Hz 1Phase
HEADS OF LASER	2	FORMAT SUPPORTED	AI\BMP\PLT\DXF\DST
SOFTWARE	KASU	POSITIONING ACCURACY	±0.1mm
GROSS WEIGHT	1150kg	OPERATING TEMPERATURE	10℃~45℃
MOTION SYSTEM	Stepper Motor	OPERATING HUMIDITY	5-95%
COOLING SYSTEM	5200 Industrial Water Chiller	TOTAL POWER	1.5KW

ACCESSORIES


Glass Co2 Laser Tube	Smoke Exhausting Fan	Spare Parts In Tool Kit	American 26 Focusing Lens	KASU Laser Safe Sticker	Guide Rail and Laser Cutting Head	KASU Laser Quality Spare Parts Hailey Air Pump

Motor and Driver	Safe Design Alarm Lamp	KASU Laser Safety Design – Emergency Stop Switch	Safe and Stable Insulation Treatment of Wire	KASU Laser Quality Spare Parts S&A Water Chiller	KASU Laser Strong Machine Triangle Structure Design	KASU Laser Power Supply and High Voltage Line Joint Insulation Support Frame

OPTIONAL DEVICE


ACTIVE FEEDER	BLADE KNIFE TABLE

EXTENTED CUTTED PATTERN PICK-UP TABLE	HONEYCOMB TABLE

Self-Owned Top Vision Software System

KASU owns the full property of the large vision software system. Together with the Canon EOS Camera with 2,400 Mega Pixels, the KD1814-S1 camera laser cutter’s vision software automates the whole graphic detection and position cutting process.

Dual-Heads With Dual-Guiderails

Unlike the dual heads with a single guide rail model, KD1816-S2, the innovative invention of KD1816-SY ensures the two heads of the camera laser cutter can cut either the same or different designed patterns at the same time.

Auto Feeding Conveyor Table

KD1816-SY is equipped with a chain conveyor belt, which can auto-feed the roll material right after the laser cutting process. With the optional active feeder, the operator only needs to take care of the cut pattern pick-up job.

Auto Feeding Conveyor Table

ONE STOP LASER SOLUTION FOR YOUR PRODUCT


Printing & Sublimation	Sportwear	Fashion & Clothing	Shoes & Bag	Gift & Toy	Home Decor

Advertising	Label	Lace & Embroidery	Decorations & Ornament	Vinyl & Sticker	Foil & Membrane


How KASU Support Your Business KASU Laser is a reputable laser cutter machine supplier in China. We achieve the dependability of our laser machines by using the most advanced manufacturing technologies, the strictest production standards, and consistent quality tests. Every single machine passes CE, and FDA certifications before being delivered to the customer. High production capacity, fast lead time, and 7/24 after-sale service. Contact us immediately!		File Download
