Feature

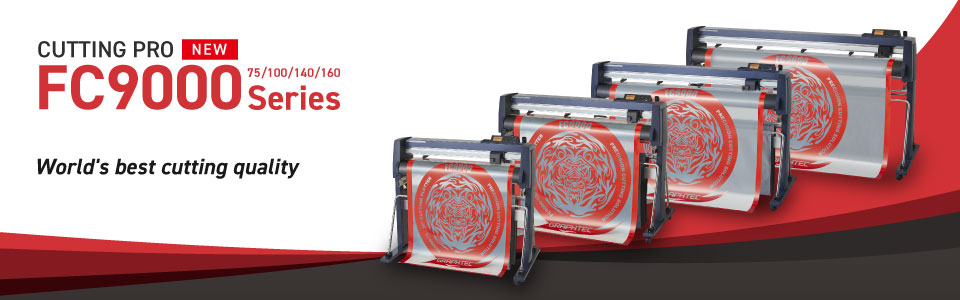

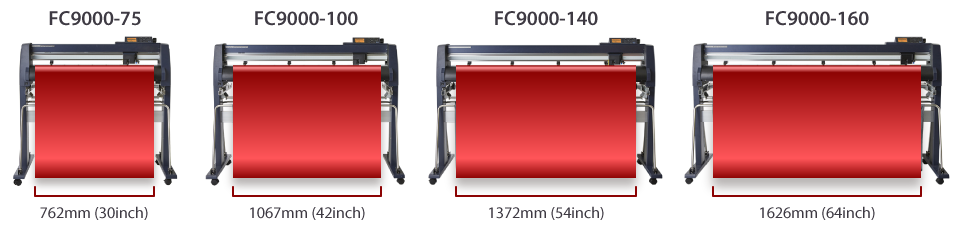

Size Lineup
Four sizes to match all requirements.

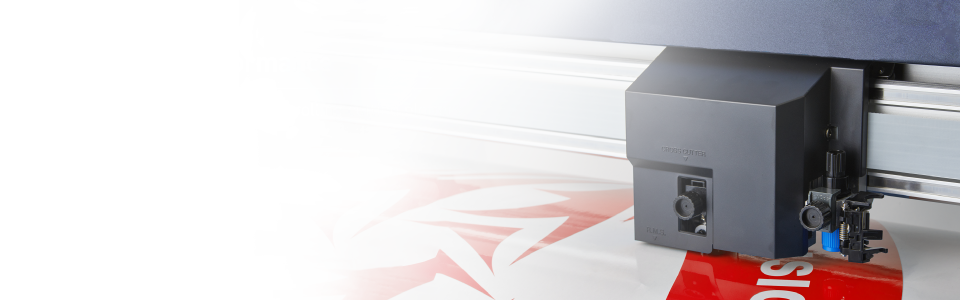

Highest Level Performance
Best in class ability
1485mm/s maximum cutting speed, 39.2m/s2 maximum acceleration, 5.88N (600gf) maximum cutting force. The FC9000 Series offers best in class productivity and abilities with a wider range of medias from thick to thin.
Reliable long-length tracking (Automatic Take-up Roller)
It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

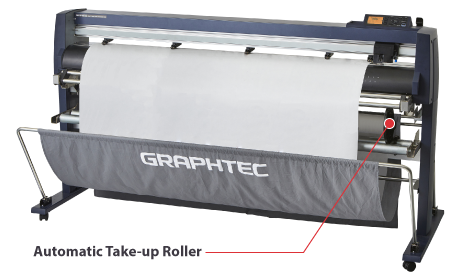

Automatic Take-up Roller（option）
The media is detected by the ultrasonic sensor and rolled up automatically.
・Corresponding Models: FC9000-140/160
・Guaranteed accuracy length: 20m（Under 1.2m per job)
・Maximum diameter of winding roll: φ180mm
* Winding conditions:
- End face of roll media and end face of paper tube should be aligned.
- Width of roll media should be the same as width of paper tube at winding side.
* It cannot be winded if media is folded or overlapped inside the basket.

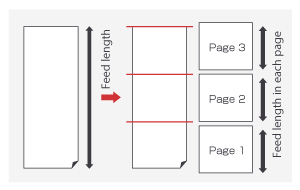

Auto panelling
To prevent skew of long-length cutting, this function makes possible to automatically split long-length jobs into smaller pages that are cut sequentially.
It shortens feed length and enables stable cutting.It is useful for cutting with higher accuracy or beyond guaranteed long length.

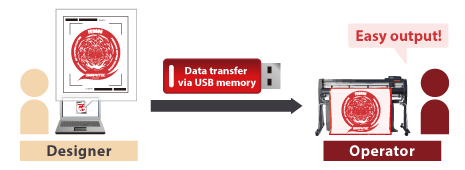

Data output via USB flash memory without PC
When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB flash memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.

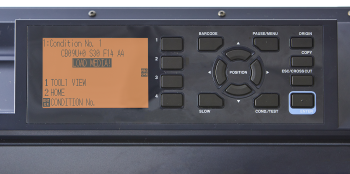

User-friendly control panel
3.7inch LCD display and
easy-to-use control panel supports 10 languages.
Improved ARMS for high precision cutting (ARMS 8.0)
The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for print & cut applications such as stickers and decals.

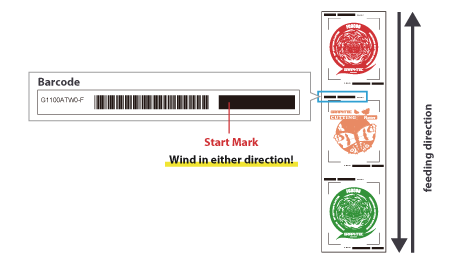

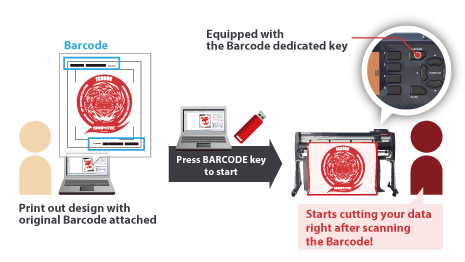

Data Link Function
(Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, FC9000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.
Continuous Cut
(Data Link function)
Barcode data management allows cutting different data sequentially by detecting the "Start Mark" of the new Barcode. Sequential Print & Cut process with roll-media is now available.

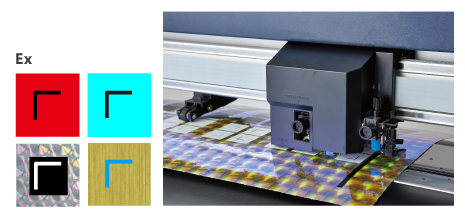

Supports colored marks / specialty media
A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of specialty media and colored marks.

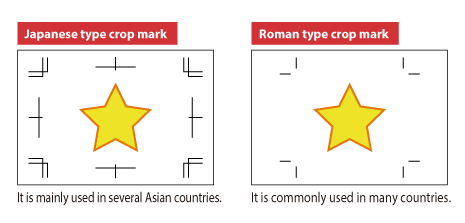

Supports Adobe Illustrator "Crop Marks"
Using the plug-in software Cutting Master 4, Adobe Illustrator crop marks will be availble.

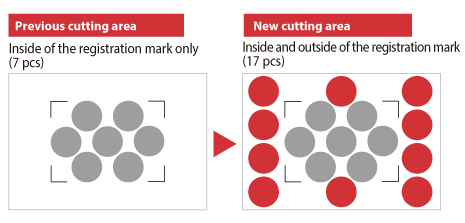

Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production eficiency is enhanced by reducing media waste.

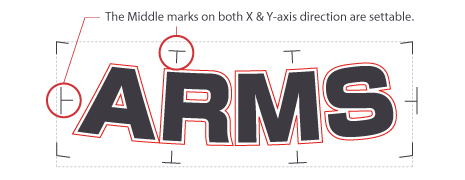

Segment Area Compensation (XY)
This function has been implemented in addition to the current X-axis Direction Segment Area Compensation. Middle mark is now available not only for X but also Y-axis allignment.
For more information on "ARMS"
There are convenience functions of ARMS in the FC9000 series.
Show Details
Software
Graphic design software
Graphtec Pro Studio (Windows)
Easy-to-use application software for creating original designs.
It has many enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other setting on plotter. EPS, Ai, CMX, and PDF file formats are supported. Graphics created with other popular design software can be imported into the software.
For customers who need enhanced functions, the optional Graphtec Pro Studio Plus is also available.
Show Details
Graphtec Studio (Mac)
This is an easy-to-use application software for Mac OS to create original designs.
Images can be easily created by using the program icons that are arranged around the drawing area.
Show Details
Adobe Illustrator / CorelDRAW plug-in software
Cutting Master 4 (Windows / Mac)
Cutting Master 4 is Graphtec plug-in software for Adobe Illustrator and CorelDRAW Graphic Suite.
It sends cutting data to the plotter and includes a variety of functions such as: preview, registration mark creation, tool conditions, cut job settings and more. Cutting Master 4 is easy to use and enables you to get the best performance from your plotter. Trim marks for Adobe Illustrator is finally available.
Show Details
Specification
Specifications
| Item | FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
|---|---|---|---|---|
| Configuration | Grit rolling type | |||
| Drive method | Digital servo drive | |||
| Max. cutting area (W x L) (*1) | 762mm × 50m | 1067mm × 50m | 1372mm × 50m | 1626mm × 50m |
| Cutting area of guaranteed accuracy (*1) | 742mm × 15m | 1047mm × 10m 762mm × 15m |
1352mm × 10m 762mm × 15m |
1607mm × 10m 762mm × 15m |
| Mountable media width (*2) | Min. 50mm | |||
| Max. 920mm (36.2 inch) |
Max. 1224mm (48.1 inch) |
Max. 1529mm (60.1 inch) |
Max. 1850mm (72.8 inch) |
|
| Mountable roll media diameter | 76 to 200mm (160mm when the optional paper ange (OPH-A21) is installed) | |||
| Mountable roll media mass | 12kg | 16kg | 20kg | 24kg |
| Compatible take-up roll width | - | 200 to 1372mm | 200 to 1626mm | |
| Compatible take-up roll mass | - | 20kg | ||
| Maximum cross cut width | 762mm | 1067mm | 1372mm | 1626mm |
| Max. cutting speed | 1485mm/s at 45° direction | |||
| Axial acceleration | Max. 39.2m/s2 at 45° direction | |||
| Cutting force | Max. 5.88N (600gf) | |||
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and media) | |||
| Mechanical resolution | 0.005mm | |||
| Programmable resolution | GP-GL：0.1 / 0.05 / 0.025 / 0.01mm HP-GL™ (*3)：0.025mm |
|||
| Repeatability (*1) | Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction) | |||
| Number of push rollers | 2 rollers | 3 rollers | 4 rollers (Max. 5 (option)) | |
| Mountable number of tools | 1 tool (mountable 2 tools (option)) | |||
| Blade types | Supersteel | |||
| Pen types | Oil-based ballpoint pen, Water-based fiber-tip pen | |||
| Media types | Thickness 0.25mm or less Marking film (PVC film / fluorescence / reflective), Polyester film (on condition), High Intensity reflective film (Diamond grade, Engineer grade) (*4) |
|||
| Display | Graphic type LCD with back-light (240dots × 128dots), supports 10 languages | |||
| Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX | |||
| Buffer memory | 2MB | |||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) (*3) | |||
| Compatible OS (*5) | Windows 10 (Home / Pro / Enterprise / Education) Windows 8.1 (Windows 8.1 / Pro / Enterprise) Windows 8 (Windows 8 / Pro / Enterprise) Windows 7 (Ultimate / Enterprise / Professional / Home Premium) Mac OS X 10.6～10.11 / macOS 10.12 ～ 10.14 (Graphtec Studio: 10.6 - 10.14, Cutting Master 4: 10.7 - 10.14) |
|||
| Supported software DOWNLOAD |
Graphtec Pro Studio (*6), Graphtec Studio, Cutting Master 4 (*6), Windows Driver | |||
| Power source | 100 V to 240 V AC, 50 / 60 Hz | |||
| Power consumption | Max. 120 W | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
| External dimensions (W × D × H) * Includes stand and basket. |
Approx. 1360ｘ1151ｘ1232 mm |
Approx. 1665ｘ1151ｘ1232 mm |
Approx. 1970ｘ1151ｘ1232 mm |
Approx. 2224ｘ1151ｘ1232 mm |
| Weight (approx.) * Includes stand and basket. |
49 kg | 56 kg | 64.0 kg (80.9kg with installed automatic take-up roller) | 70.0 kg (88.5kg with installed automatic take-up roller) |
| Safety | PSE, UL/cUL, CE mark | |||
| EMC | VCCI Class A, FCC Class A, CE mark | |||
(*1)Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2)There are conditions for operability when setting media.
(*3)HP-GLTM is a registered trademark of Hewlett-Packard Company.
(*4)CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high-intensity reflective film.
(*5)Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
(*6)It requires an Internet connection in order for activation or registration when starting the software for the first time.
Standard accessories
| Item | Q'ty | Description |
|---|---|---|
| Power cord | 1 | The type of cord is different by destination. |
| USB Cable | 1 | 2.9m long |
| Cutting blade holder | 1 | PHP33-CB09N-HS |
| Cutting Blade | 1 | CB09UB-1P |
| Loupe | 1 | PM-CT-001 |
| Fiber-tip pen holder | 1 | PHP31-FIBER |
| Water-based Fiber-tip pen | 1 | KF700-BK (black) |
| Stand | 1 | |
| Media Stocker | 1 | |
| Basket | 1 | |
| Flange set | 1 | OPH-A21 (only America) |
| DVD-ROM | 1 | User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4 |
| Printed document | 1 | SetupManual, Cutter Blade Manual and Safety Manual |
Option
| Item | Part No. | Description |
|---|---|---|
| Automatic Take-up Roller | OPH-A43 | For FC9000-140 |
| OPH-A44 | For FC9000-160 | |
| Additional push roller kit | OPH-A47 | For FC9000-140 or FC9000-160 |

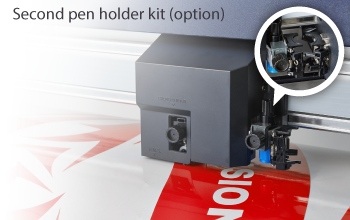

| 2nd pen holder | ECK0013 | For dual tool configuration (dealer option) |
| Flange | OPH-A21 | Flange for media holding |
| Graphtec Pro Studio Plus | OPS682-PLS | Design software including all advanced functions (1 license) |
| Graphtec Pro Studio Plus for Rhinestone | OPS682-RSF | Limited edition of rhinestone function only (1 license) |
| Graphtec Pro Studio Plus for Auto Nesting | OPS682-ANF | Limited edition of auto nesting function only (1 license) |

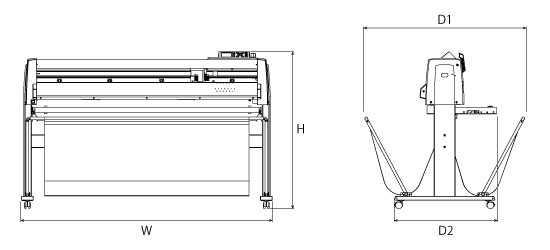

Dimensions
| FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 | |
|---|---|---|---|---|
| External dimensions (approx.) 【W×D1(D2)×H】 |
1360ｘ1151(840)ｘ1232 mm | 1665ｘ1151(840)ｘ1232 mm | 1970ｘ1151(840)ｘ1232 mm | 2224ｘ1151(840)ｘ1232 mm |
*Includes stand and basket.
*Tolerance : +/- 5 mm
Consumable
Consumable Item
| Item | Model Name | Image | Description | Package |
|---|---|---|---|---|
| Cutting blade holder | PHP33-CB09N-HS |  |
For CB09U series blade | 1 set/pack |
| PHP33-CB15N-HS |  |
For CB15U series blade | 1 set/pack | |
| PHP35-CB09-HS |  |
For CB09U series blade | 1 set/pack | |
| PHP35-CB15-HS |  |
For CB15U series blade | 1 set/pack | |
| Cutting blade | CB09-P | 0.9mm dia. 45º angle, Supersteel | 5 blades/pack | |
| CB09UB-5 |  |
0.9mm dia. 45º angle, Supersteel Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick. |
5 blades/pack | |
| CB09UB-K60-5 |  |
0.9mm dia. 60o, Supersteel blade Thinner film (Tint film), 0.03 mm to 0.25 mm thick. |
5 blades/pack | |
| CB15U-5 |  |
1.5mm dia. 45º, Supersteel blade Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick. |
5 blades/pack | |
| CB15U-K30-5 |  |
1.5mm dia. 30º, Supersteel Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick). |
5 blades/pack | |
| CB15UA-5 |  |
1.5mm dia. 45º, Supersteel High-intensity reflective film or harder film, up to 0.5 mm thick. |
5 blades/pack | |
| CB15UA-K30-5 |  |
1.5mm dia. 30º, Supersteel High-intensity reflective film or harder film, up to 1.0 mm thick. |
5 blades/pack | |
| Cross-cutter blade | PM-CC-002 | Supersteel type | 1 blade/pack | |
| Loupe | PM-CT-001 |  |
Checking blade length & quality of blade tip, for PHP33 and PHP35 series | 1 set/pack |
| Fiber-tip pen, pen holder |
KF700-BK |  |
Water-based fiber-tip pen, Black | 10 pens/pack |
| KF700-RD | Water-based fiber-tip pen, Red | 10 pens/pack | ||
| PHP31-FIBER |  |
Pen holder for KF700 series pen | 1 set/pack | |
| Ballpoint pen, pen holder |
KB700-BK |  |
Oil-based ballpoint pen, Black | 10 pens/pack |
| PHP34-BALL |  |
Pen holder for the KB700-BK pen | 1 set/pack | |
| Pouncing tool | PPA33-TP12 | Steel pin 1.2 mm dia. | 1 set/pack | |
| Cutting mat | PM-CR-005 | For FC9000-75 replacing cutting mat | 2 sets/pack | |
| PM-CR-006 | For FC9000-100 replacing cutting mat | 2 sets/pack | ||
| PM-CR-007 | For FC9000-140 replacing cutting mat | 2 sets/pack | ||
| PM-CR-008 | For FC9000-160 replacing cutting mat | 2 sets/pack | ||
Support
Drivers
| Item | Version | Update | Download |
|---|---|---|---|
| Windows Driver (32-bits Edition) OPS662 (Win10/8.1) | ver.3.90 |  Feb. 2020 |
Download file |
| Windows Driver (64-bits Edition) OPS662 (Win10/8.1) | ver.3.90 | Feb. 2020 |
Download file |
Softwares
| Item | Version | Update | Download |
|---|---|---|---|
| Graphtec Pro Studio (for Windows) | ver.2.90 | Nov. 2019 | Download page |
| Graphtec Pro Studio Plus (for Windows) | |||
| Graphtec Studio (for Mac) (OS X (10.10～10.11), macOS (10.12～10.15)) | ver.3.0.035 | Dec. 2019 | Download page |
| Graphtec Studio (for Mac) (OS X (10.6～10.9)) | ver.2.2.1279 | Nov. 2019 | Download page |
| Cutting Master 4 (for Windows) | ver.3.20 | Dec. 2019 | Download page |
| Cutting Master 4 (for Mac) (OS X (10.9～10.11), macOS (10.12～10.14)) | ver.3.40 | Jan. 2020 |
Download page |
| Cutting Master 4 (for Mac) (OS X (10.7～10.8)) | ver.2.82 | Nov. 2019 | Download page |
Manual
| Item | Update | Download |
|---|---|---|
| User manual (English), PDF format file | Nov. 2019 | Download file |
| Setup manual (English), PDF format file | Nov. 2019 | Download file |
Firmware
| Item | Version | Update | Download |
|---|---|---|---|
| FC9000 Updated Firmware ( Win 10 / 8.1) | ver.1.03 | Feb. 2020 |
Download file |
On driver and software, the file is compressed in the ZIP format. It is required to decompress before use.
